Siaecosys Fardriver ND72450 Controller

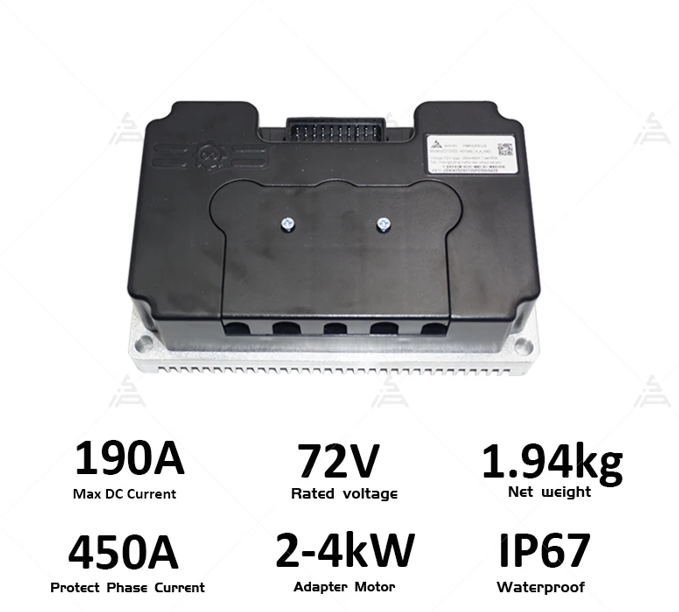

Key Features:
-Maximum Battery Current: 190A
-Maximum AC Phase Current: 450A
-Rated Voltage: 72V
-Operating Voltage: 52V to 90V
-Operating Temperature Range: -30°C to +55°C
-Storage Temperature: -45°C to +85°C

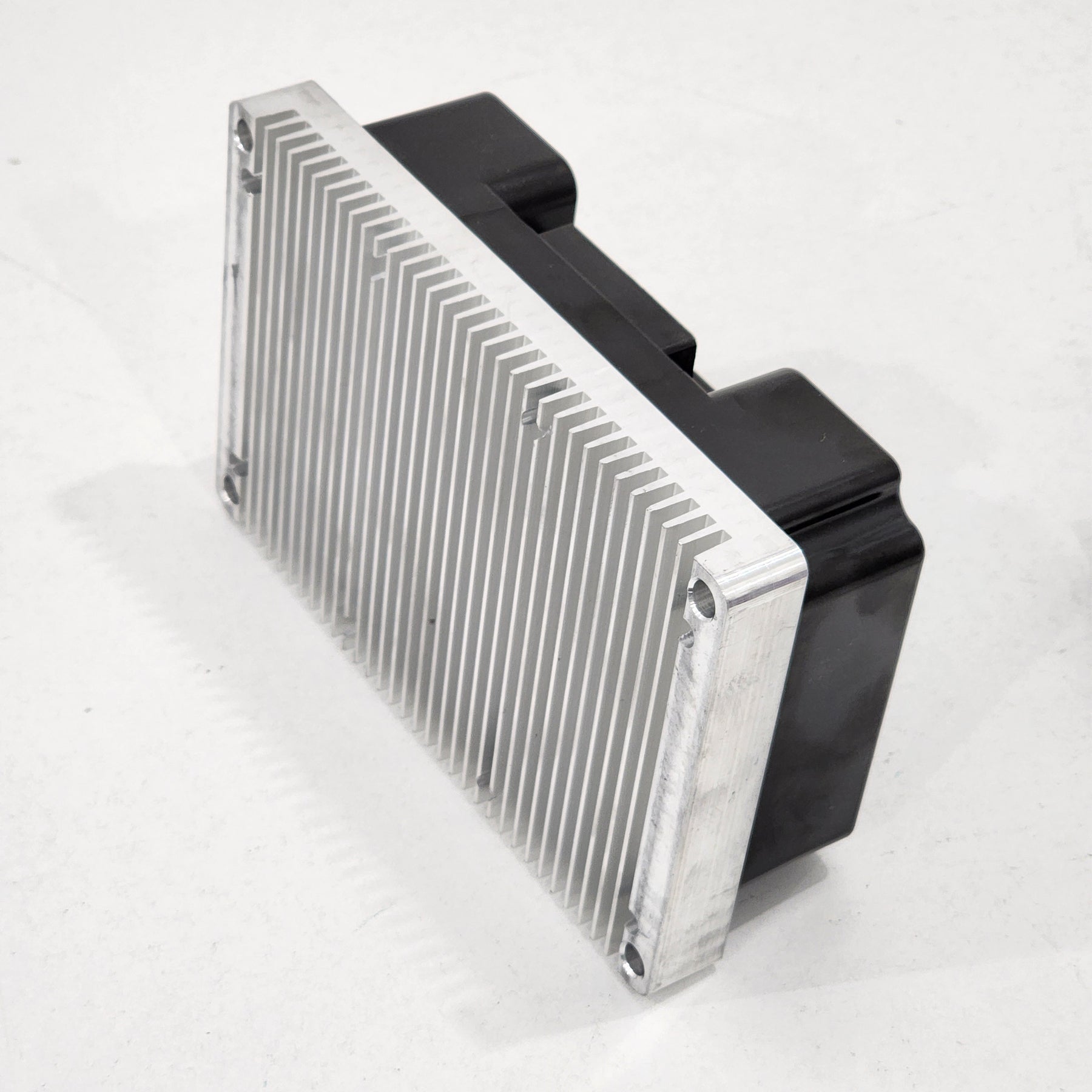

-Cooling Method: Natural Cooling
-Cooling Requirements: Good Ventilation or Forced Air Ventilation
-Efficiency: 99%
-Vibration Standard: GB/T2423
-Net Weight: 2kg
-Sensor Type: Hall
-IP 67: Completely dustproof. Protected against immersion for 30 minutes up to a depth of 1m.
- Bluetooth adapter included

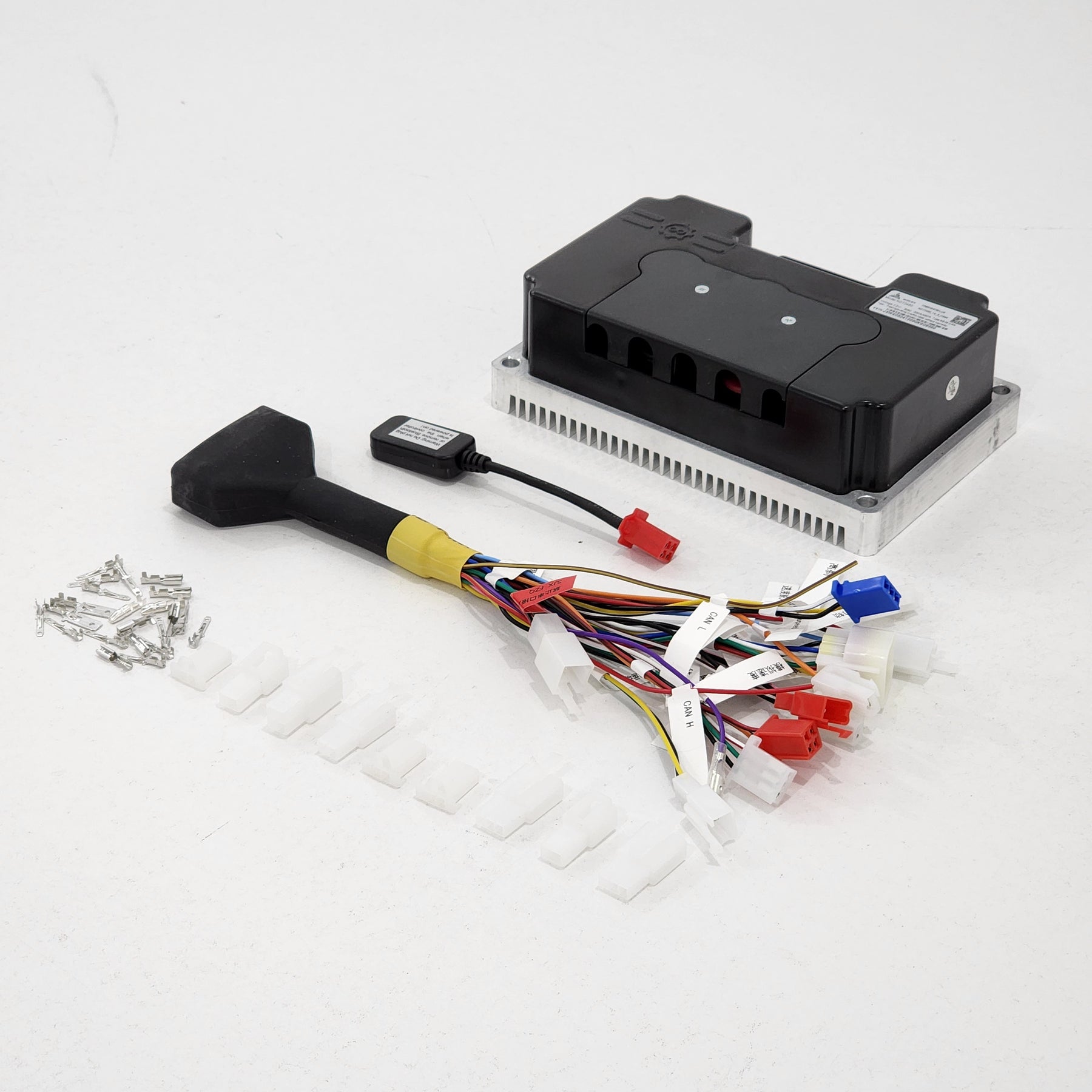

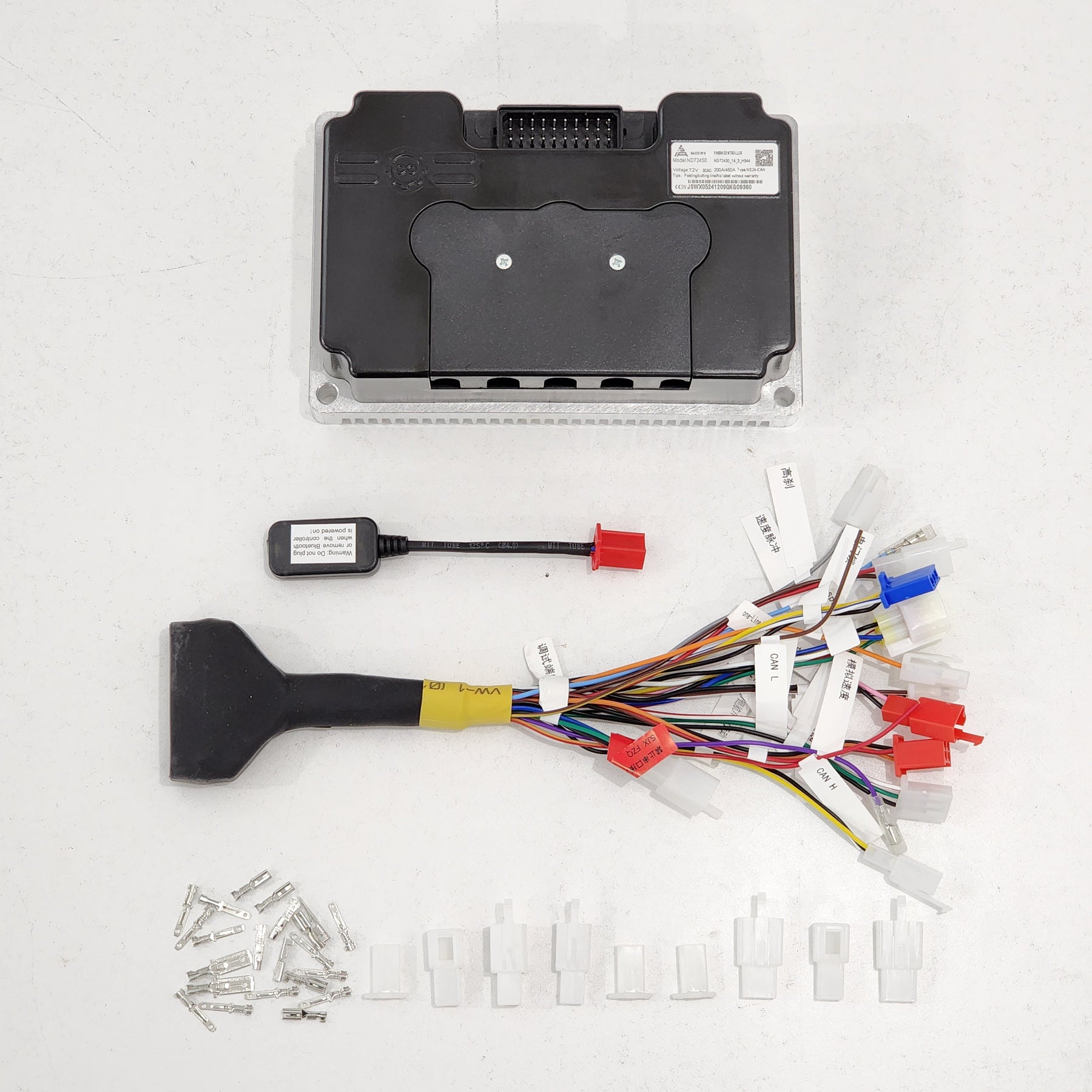

- Basic wiring harness included
The Fardriver ND72450 controller is a sine wave motor controller for electric bicycles, scooters, and motorcycles. It offers high efficiency, low noise, and low power consumption, making your electric bicycle or motorcycle more comfortable and easier to control.
Easily programmable via Bluetooth, it is compatible with iPhone and Android phones.
Fardriver ND72450 Controller
Voltage: 48-72V DC (max. 90V), 72V battery recommended.
DC Current: 200A maximum (battery current).
Phase Current: 450A maximum.
Functions: Forward, Reverse, Boost, 3 Speeds, Low Brake, High Brake, etc.
Controller Type: Sine Wave Motor Controller.

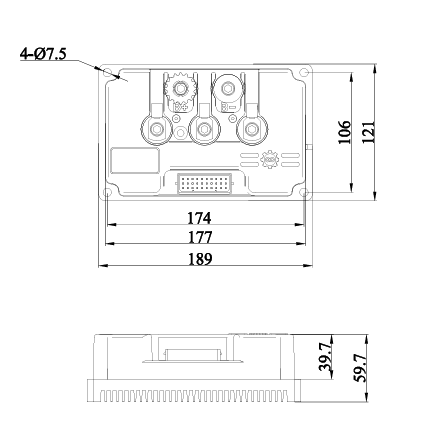

Dimensions: 179 x 120 x 55mm. Length: 179mm, Width: 120mm, Height: 55mm.
Net weight: 2.00 kg
Fardriver Controller Features:
1) FOC-180 sinusoidal drive controller for BLDCM or PMSM motors, hub motors, and mid-drive motors.
2) The motor reaches its optimal starting angle in just 3 minutes from the first use.
3) Motor torque ripple is minimized, ensuring quiet and comfortable operation of the electric vehicle, without noise or vibration.
4) The precise current ring provides precise input torque to meet high output torque requirements during start-up and uphill driving.
5) The controller boasts high efficiency thanks to the space vector converter control algorithm, which effectively reduces heat generation and extends battery life.
6) Built-in protections: protection against locked rotor, overcurrent, overload, overheating, speed, overvoltage, and undervoltage, etc., thus ensuring the safety of the electronic control system and the vehicle. 7) The intelligent system status and fault management system effectively monitors the current operating mode, external input status, and faults. The indicator light flashes simultaneously to facilitate diagnosis and maintenance.
8) Complete peripheral interfaces: reverse gear, cruise control, anti-theft, electronic brake, etc.
9) Parameters can be modified and configured via online configuration on a computer.
The Fardriver ND72450 controller is a sinusoidal controller for electric dirt bikes, scooters, motorcycles, ATVs, and UTVs. Recommended motor power: 2000W, 3000W, 4000W, 5000W, 6000W
The Fardriver ND72450 controller is programmable via computer and Bluetooth (iPhone and Android). Bluetooth is available as an option and allows the controller to be programmed via Bluetooth from an iPhone or Android smartphone.
