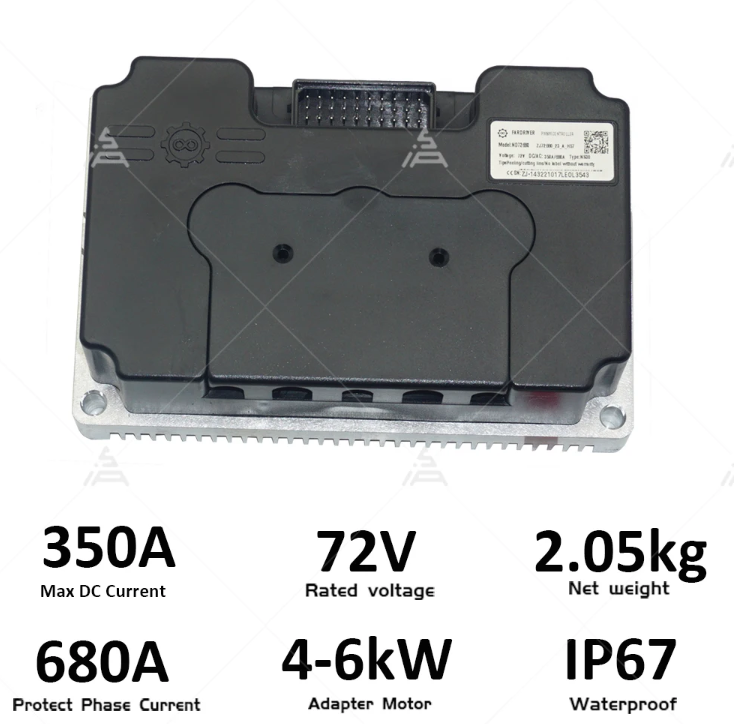

Siaecosys Fardriver ND72680 Controller
Key Features:
-Maximum Battery Current: 350A
-Maximum AC Phase Current: 680A
-Rated Voltage: 72V
-Operating Temperature Range: -30°C to +55°C
-Storage Temperature: -45°C to +85°C
-Cooling Method: Natural Cooling
-Cooling Requirements: Good Ventilation or Forced Air Ventilation
-Efficiency: 99%
-Vibration Standard: GB/T2423
-Net Weight: 2.05kg
-Sensor Type: Hall Sensor
-IP 67: Completely dustproof. Protected against immersion for 30 minutes up to 1m deep.
-Bluetooth Adapter Included
-Basic Wiring Harness Included
The Fardriver ND72680 controller is a sine wave motor controller for electric bicycles, scooters, and motorcycles. It offers high efficiency, low noise, and low power consumption, making your electric bicycle or motorcycle more comfortable and easier to control.
Easily programmable via Bluetooth, it is compatible with iPhone and Android.
Fardriver ND72680 controller (battery current 350A, phase current 680A)
Voltage: 48-72V DC (max. 90V), 72V battery recommended.
DC current: 350A maximum (battery current).
Phase current: 680A maximum.
Functions: forward, reverse, boost, 3 speeds, light braking, heavy braking, etc.
Controller type: sine wave motor controller.
Dimensions: 179 x 120 x 65 mm. Length 179 mm, width 120 mm, height 65 mm.
Net weight: 2.65 kg
Fardriver Controller Features:
1) FOC-180 sinusoidal drive controller for BLDCM or PMSM, hub motor, and mid-drive motor.
2) It takes only 3 minutes for the motor to be perfectly tuned to its optimal electronic angle from the first use.
3) Motor torque ripple is minimized, ensuring quiet, vibration-free, smooth, and comfortable operation of the electric vehicle.
4) The precise current ring provides precise input torque to meet high torque requirements during start-up and uphill driving.
5) The controller boasts high efficiency thanks to a space vector converter control algorithm, which effectively reduces heat buildup and extends battery life.
6) Built-in protections: locked rotor, overcurrent, overload, overheating, speed, overvoltage, undervoltage, etc., thus ensuring the safety of the electronic control system and the vehicle.
7) The intelligent system status and fault management system effectively monitors the current operating mode, external input status, and faults. Simultaneous LED flashing facilitates diagnostics and maintenance.
8) Comprehensive peripheral interfaces: reverse gear, cruise control, anti-theft, electronic brake, etc.
9) Parameter changes and adjustments are possible via online configuration on a computer.
The Fardriver ND72680 controller is a sine wave controller for electric dirt bikes, scooters, motorcycles, ATVs, and UTVs. Recommended motor power: 4000W, 5000W, 6000W, 7000W, 8000W.
The Fardriver ND72680 controller can be programmed via computer or Bluetooth (iPhone and Android). Bluetooth is an option for programming the controller via Bluetooth from an iPhone or Android phone.
