Universal Electric Motorization Kit – 4 to 10 kW | QS138 90H + ASI BAC4000 (BATTERY SOLD SEPARATELY)
Easily convert your vehicle into an electric solution for work or leisure!

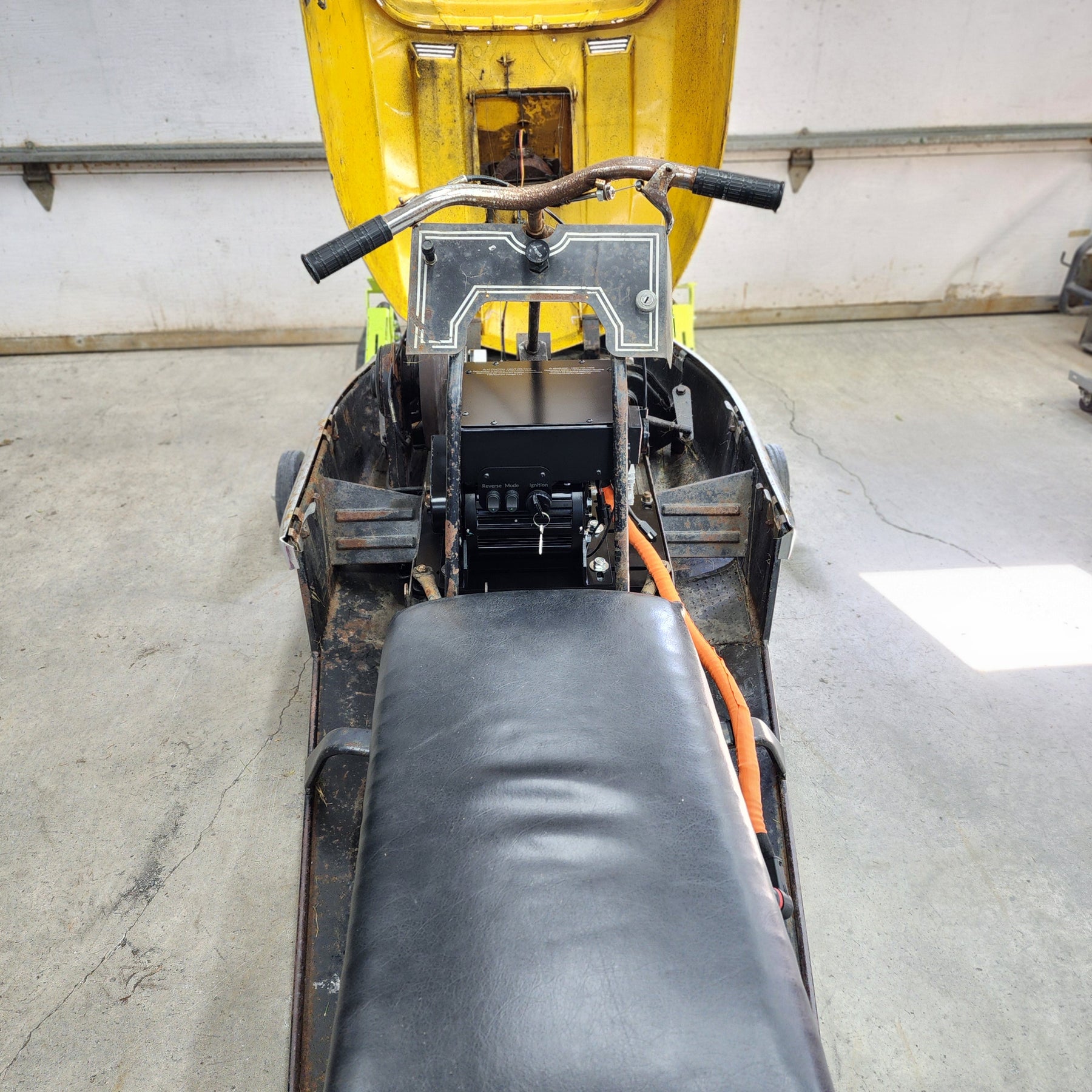

This complete electric motorization kit is designed to simplify the conversion of off-road vehicles, such as antique snowmobiles (e.g., Ski-Doo Olympique, Élan, or others), for everyday use, whether for work in the maple grove, on your property, or for outdoor activities. This kit can also be used as a stationary motor similar to a Honda GX390 or other motor, but in an electric version, for various applications such as driving hydraulic pumps or other equipment for light or commercial work.
Technical help – Some basic rules
- Autonomy depends on the total energy of the battery, expressed in Wh or kWh (1 kWh = 1000 Wh). It is calculated by Capacity (Ah) × Voltage (V).
- Example: A 72V 10Ah battery = 720 Wh (0.72 kWh).
- Difference between kW and kWh:
- 1 kW = instantaneous power supplied or consumed.
- 1 kWh = total energy consumed or stored.
Example: 1 kW used for 2 hours = 2 kWh (2000 Wh).
Motor power:
- 1 HP ≈ 0.75 kW.
- An engine converts approximately 80% of electrical power into mechanical power.
- Example: 10 kW battery ≈ 8 kW mechanical (~10 HP).
Electric vs. gasoline comparison:
- A 10 kW electric motor can replace a 15 to 20 kW combustion engine thanks to its instant torque and superior efficiency.
- Unlike a gasoline engine, it does not lose energy in transmission and delivers its power immediately, offering better responsiveness and efficiency.
Key features of the kit:
✅ QS138 90H V1 motor (Taper Shaft) – Easy to install, ready to run
✅ ASI BAC4000 HIGH PERFORMANCE controller with convenient mode options (Eco/Sport/Reverse)
✅ Motor mounts, sprocket, chain, and chain guard included – Simplified installation
✅ Safety and protection – Fuses for ignition, DC-DC input and output (72V to 12V) with 10A protection. The motor and controller are protected against overcurrent and overheating
✅ Choose your control mode – Select between a twist grip throttle, foot pedal, thumb throttle, or cable throttle
✅ Flexible power supply – Rated for 72V, but also compatible with 36V, 48V, and 60V, offering adaptability to your battery and power needs.
Made to order with custom configurations
We currently manufacture these kits on demand, allowing us to tailor certain configurations to your specific needs at an additional cost for special requirements. Before shipping, we will finalize essential parameters with you, such as:
✔ The direction of rotation of the motor according to your installation
✔ Eco and Sport mode settings (speed and power)
✔ Reverse speed, set by default to approximately 1/3 of forward speed, but adjustable from 0 to 100%
Battery selection for optimal customization
The battery you choose will directly determine the power and range of your kit. Based on the specifications of the battery you select, we will adjust the motor power to ensure optimal performance tailored to your specific needs. Whether you are looking for more power or extended range, we ensure that each kit is perfectly tailored to your configuration.
Reserve your customized kit now
To reserve your customized electric motor kit, contact us with the details of your vehicle to be converted and any other relevant information. The more details you provide about your project, the better we will be able to advise you and tailor the kit to your specific needs. Whether it's the motor configuration, battery, or control options, we will be happy to guide you in making the ideal choice.

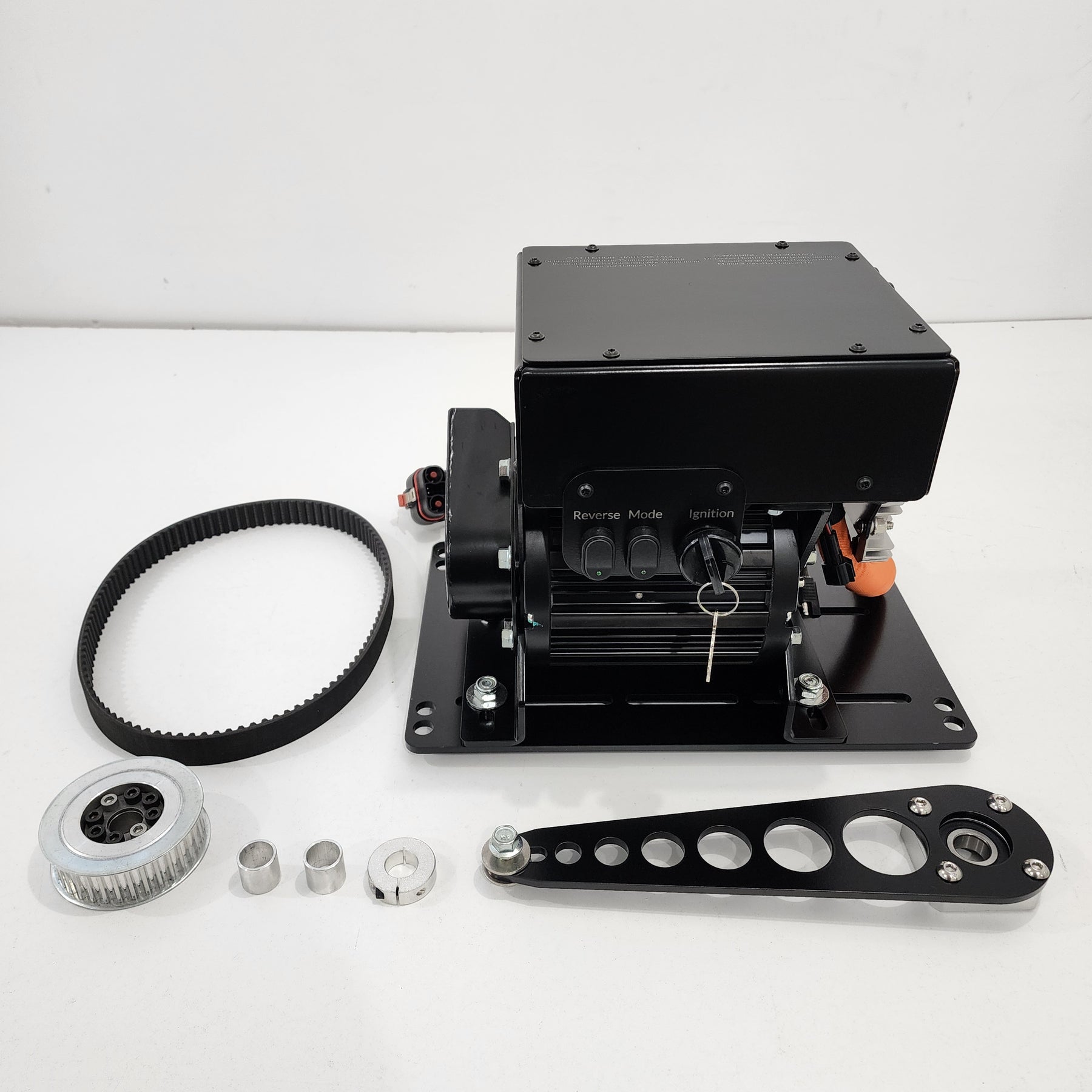

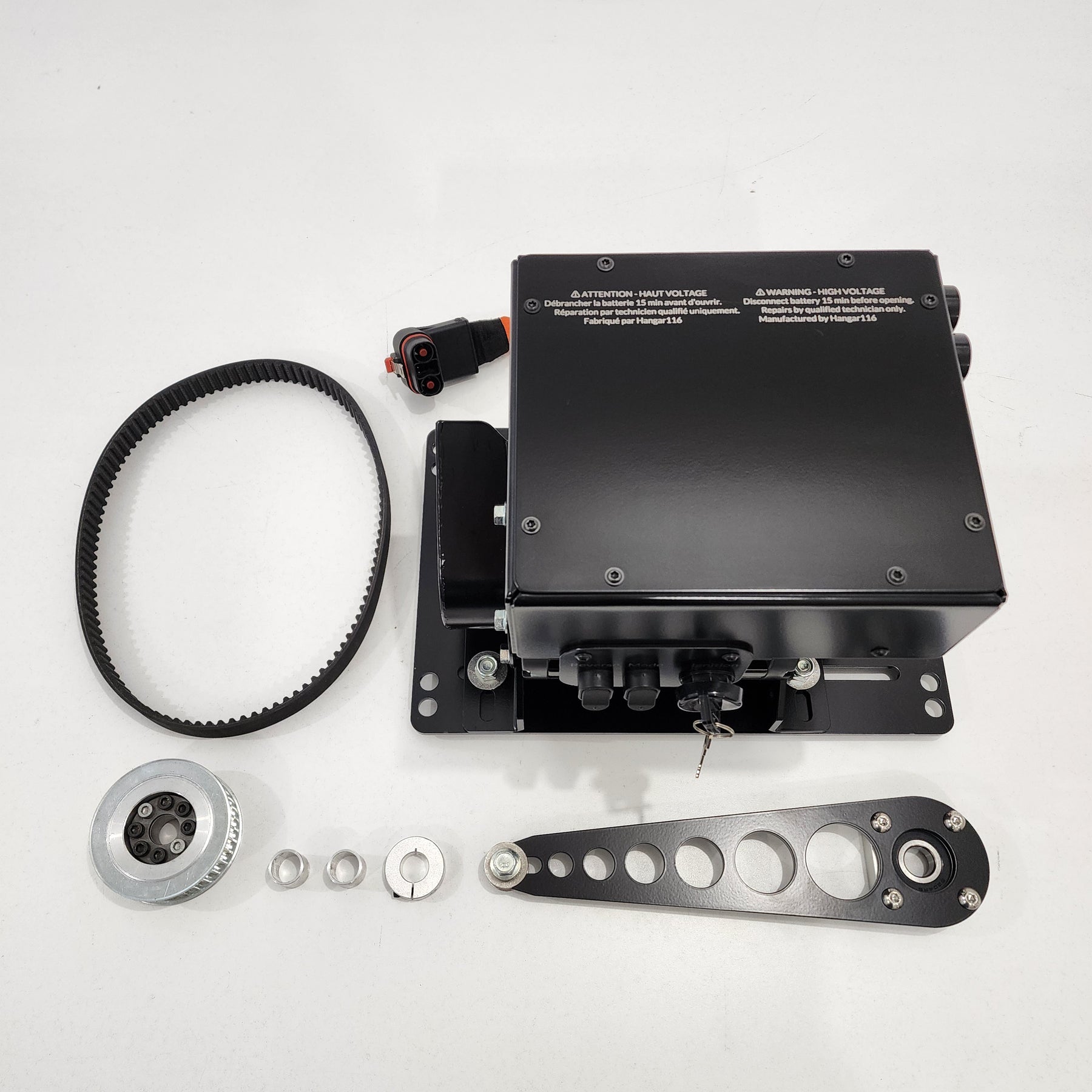

Contents of delivery – Electric motorization kit
Your motorization kit is delivered ready to use, with all the essential components for simplified installation:

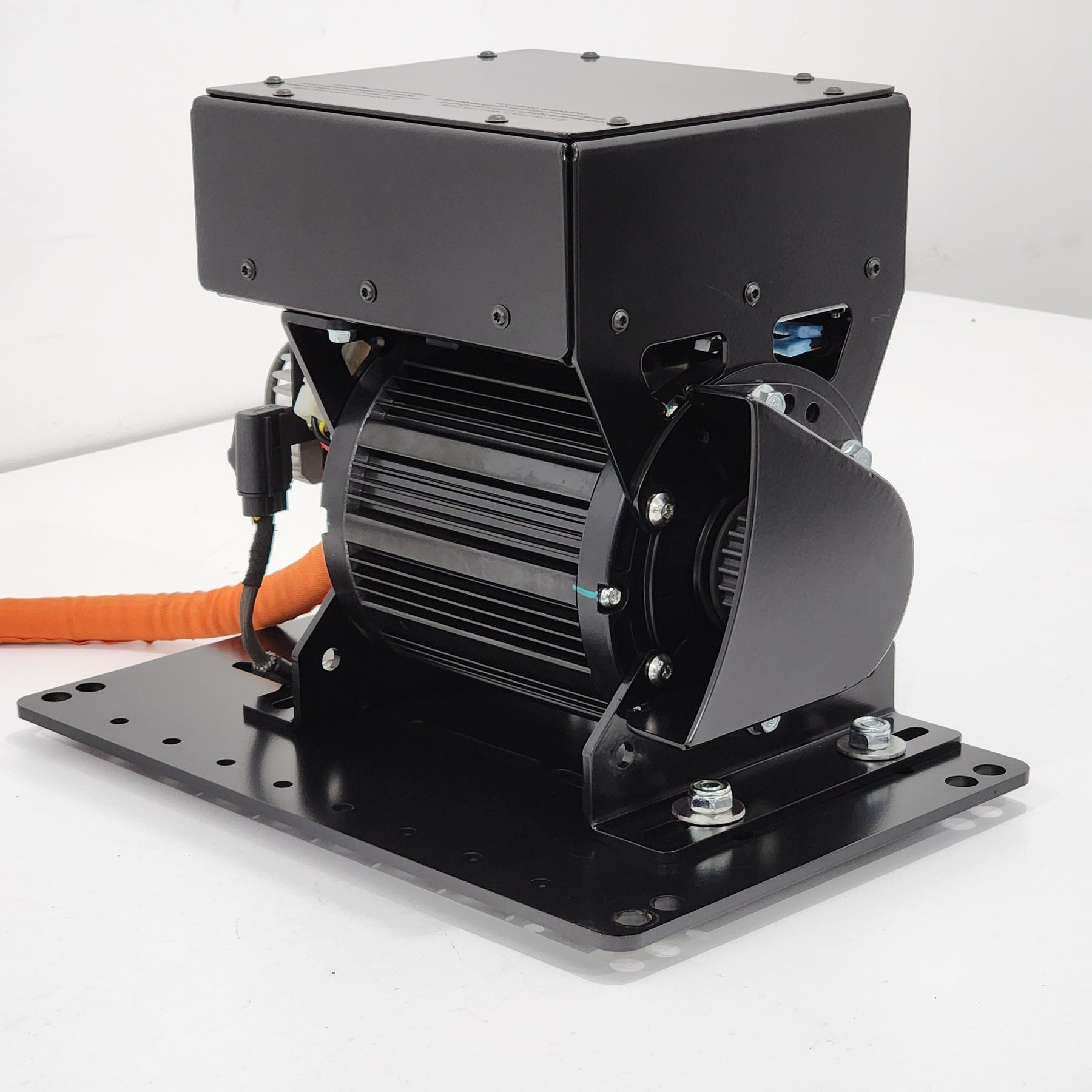

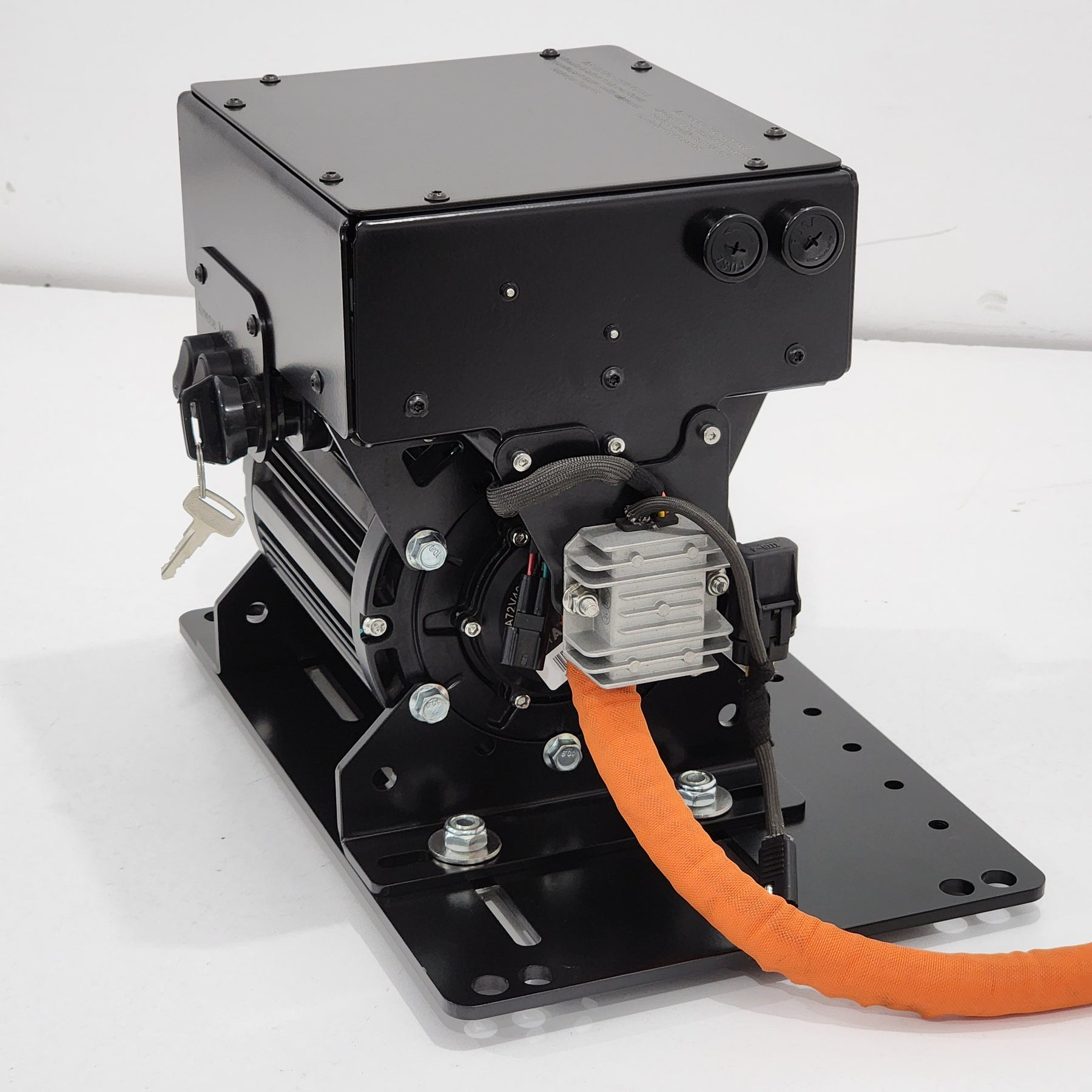

✔ QS138 90H V1 motor + ASI BAC4000 controller, preconfigured and adjusted for your application

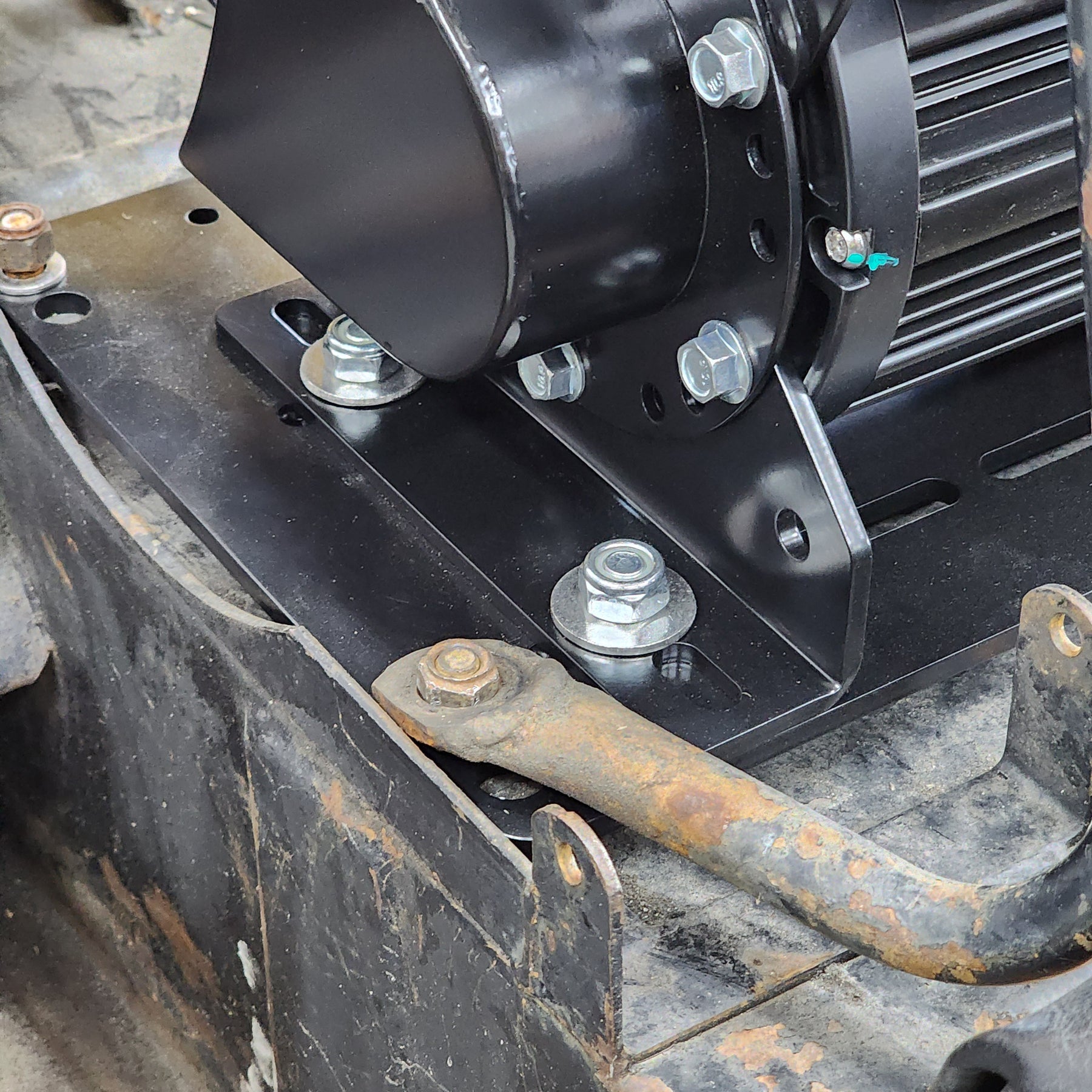

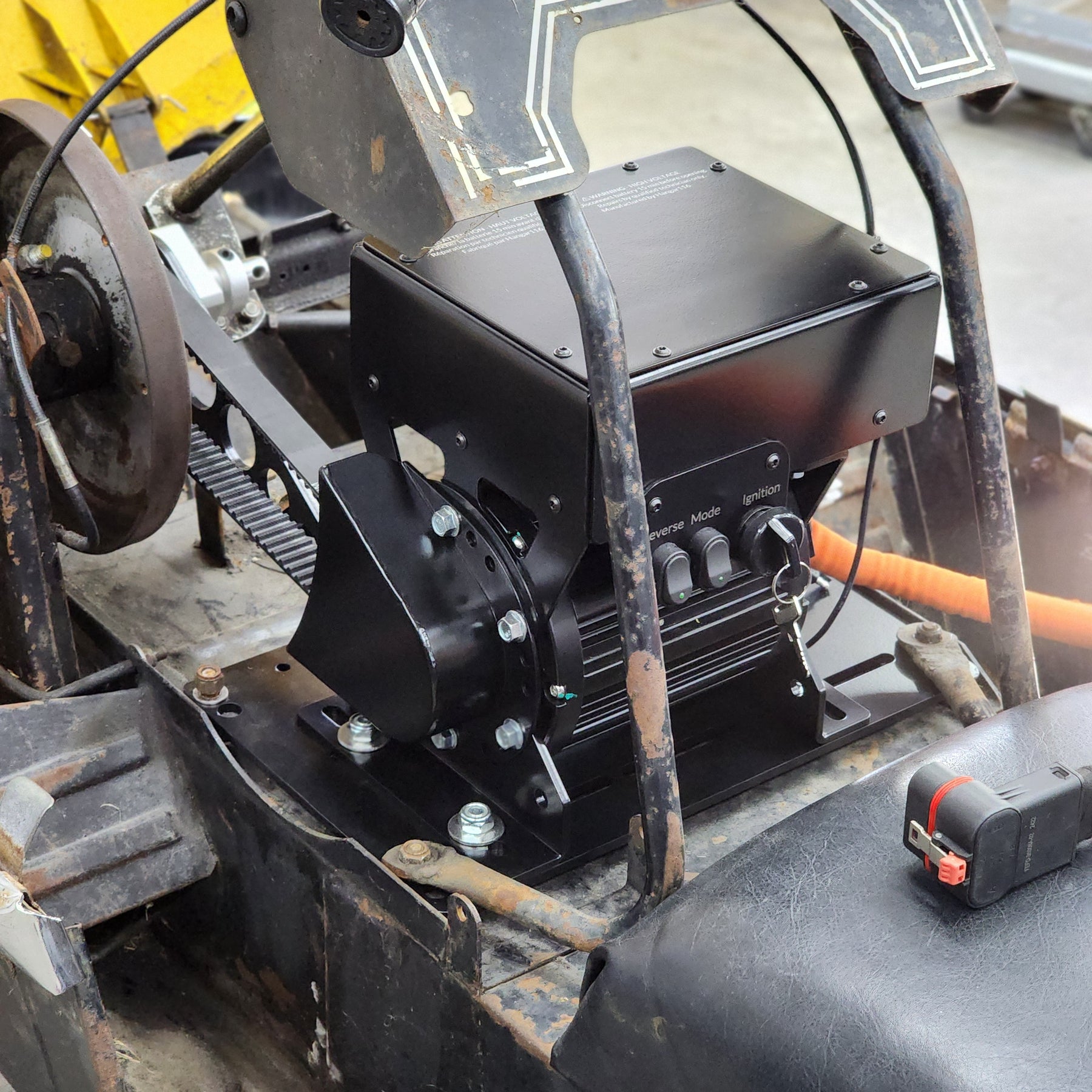

✔ Base bracket designed to fit vintage snowmobiles, such as the 1970s Ski-Doo Olympique

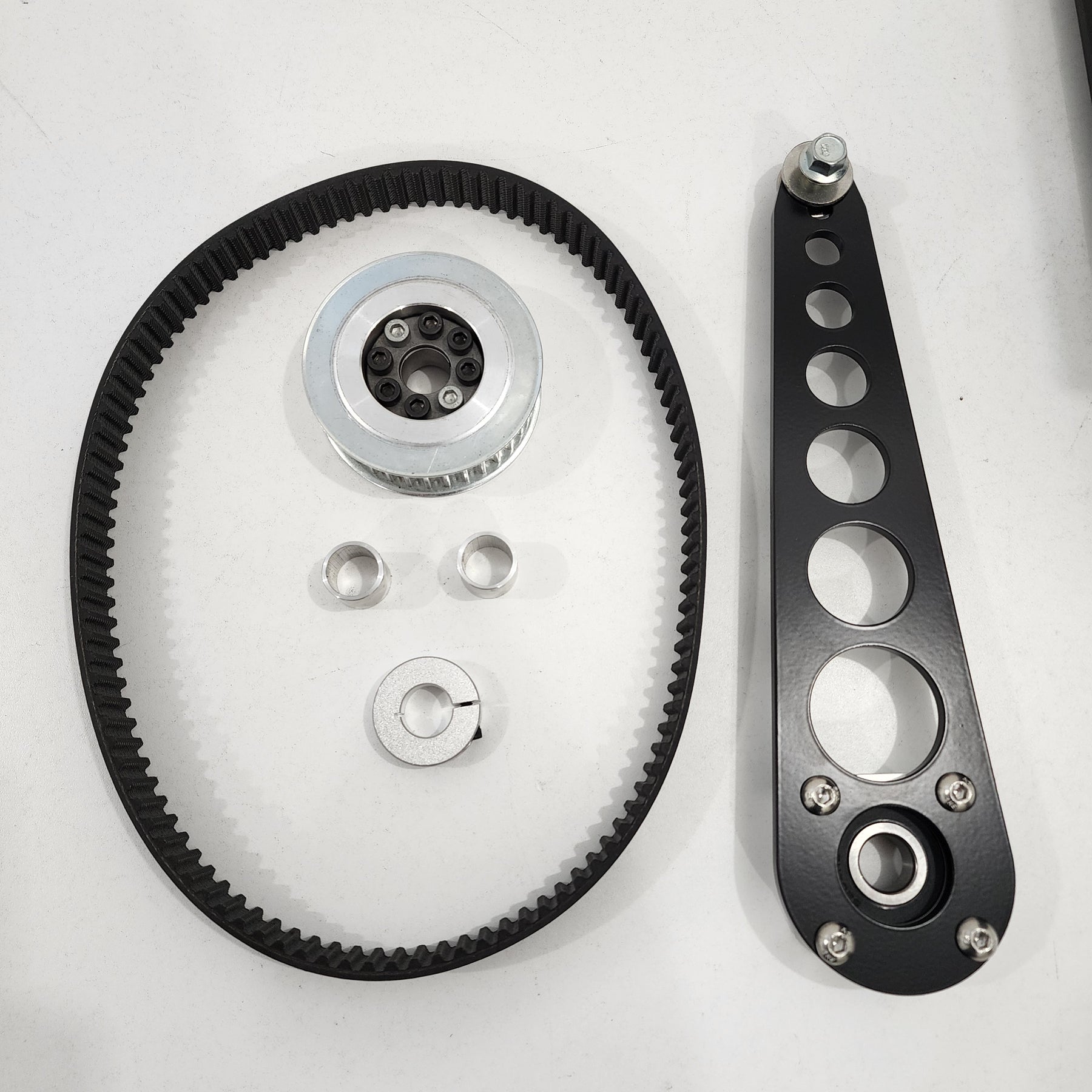

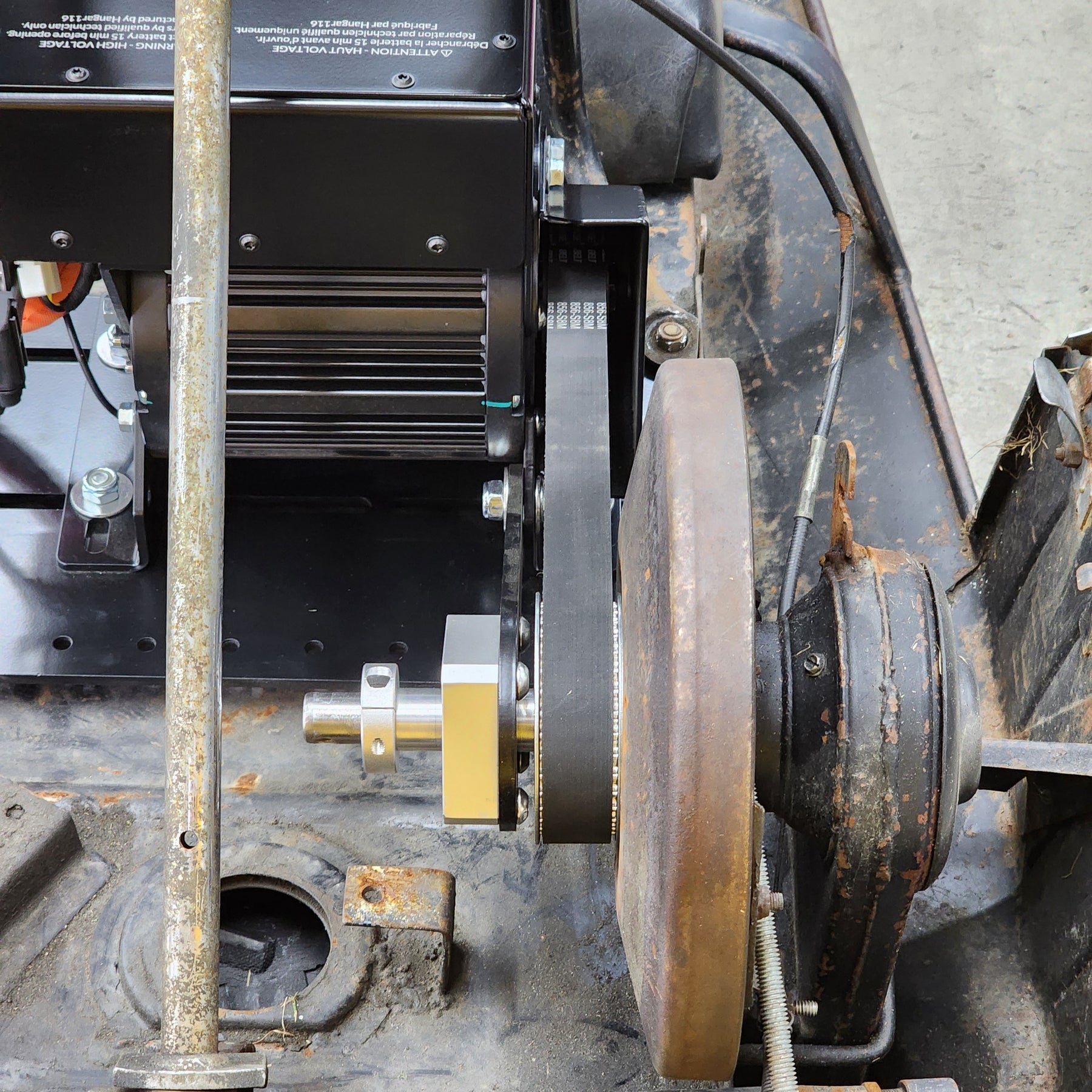

✔ Chain and sprocket included for efficient transmission

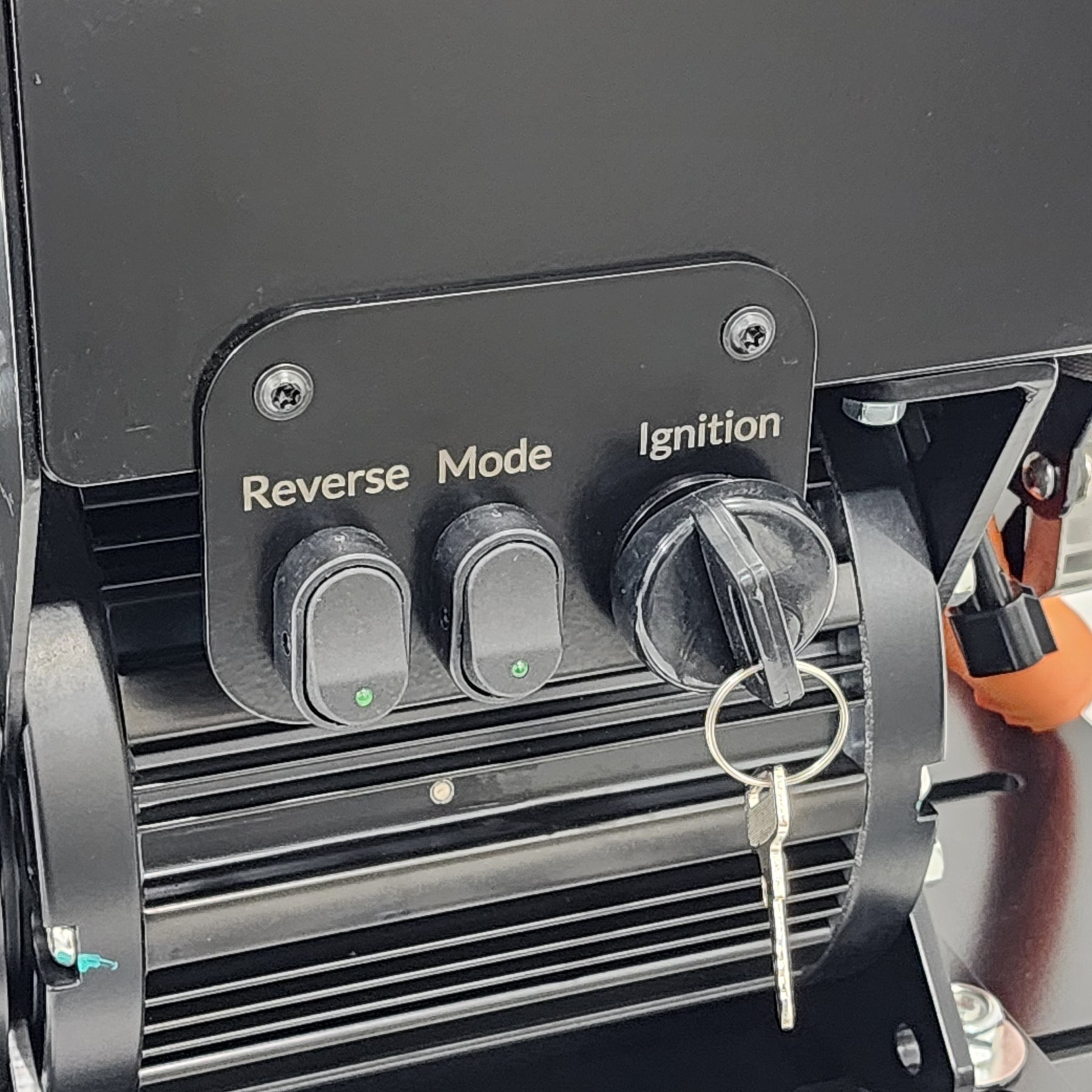

✔ Ignition keys for simple and secure start-up
✔ 72V to 12V 10A DC-DC converter included (20A option available)
✔ Choice of throttle control: select between a twist grip, thumb throttle, foot pedal, or cable throttle (comes with cable throttle by default)

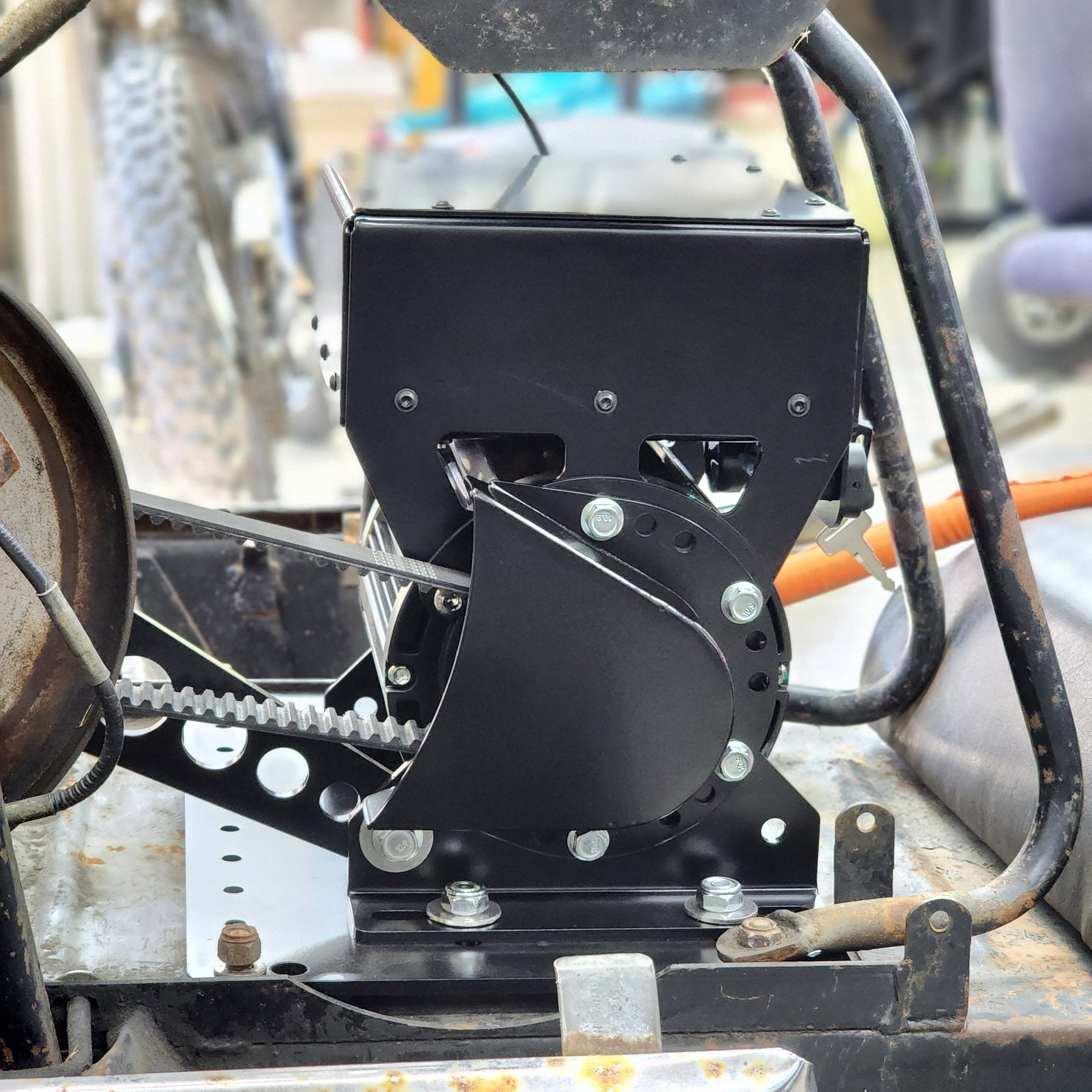

✔ Chain guard for the motor and sprocket, with adapter and bolts for cam pulley
Warranty conditions
Our kits are covered by a 1-year legal warranty against manufacturing defects, if used with our batteries or configured by us according to the battery chosen and adjusted on site. The warranty will be void in case of misuse or unauthorized modifications to the kit components. For any questions, assistance, or complaints, please contact our after-sales service.
