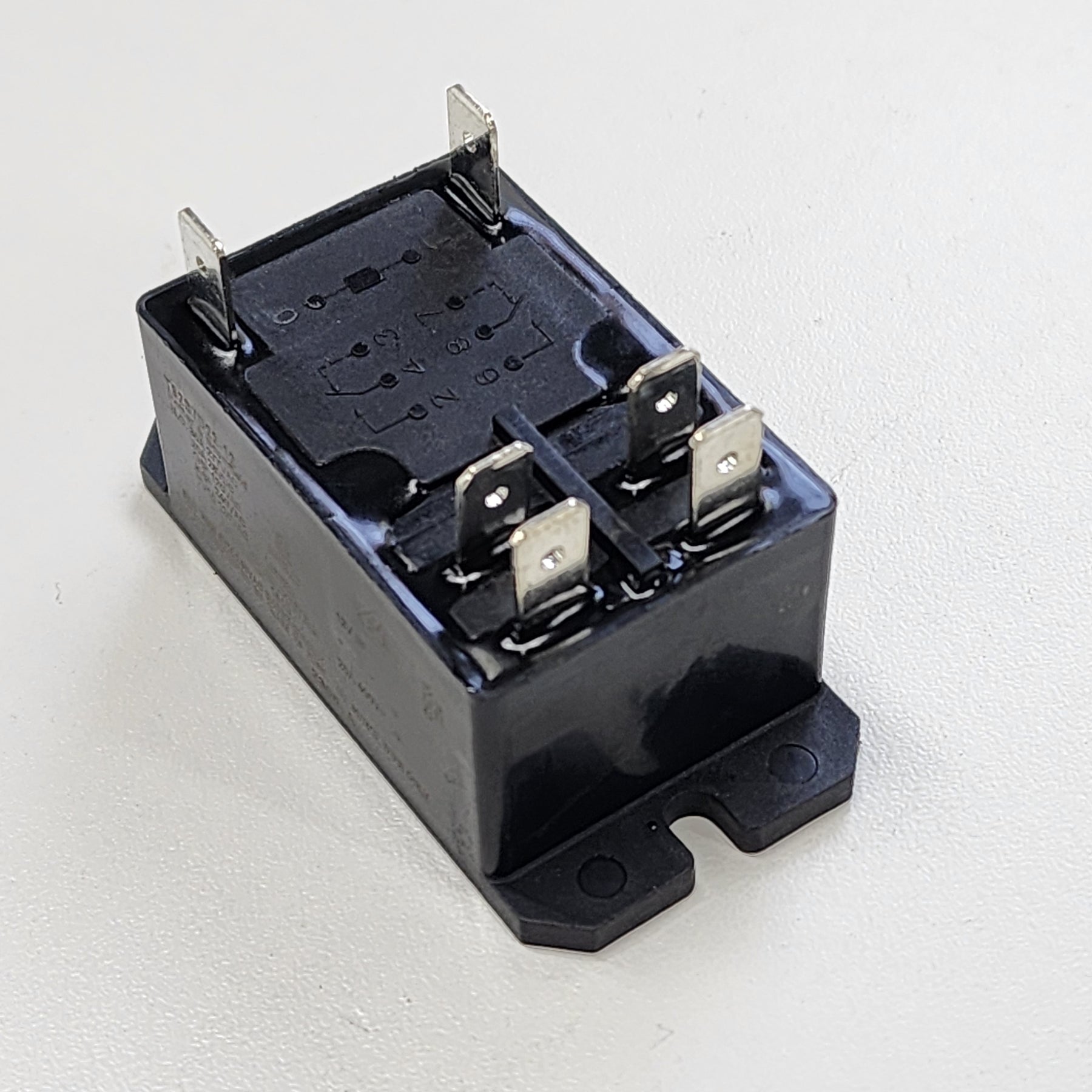

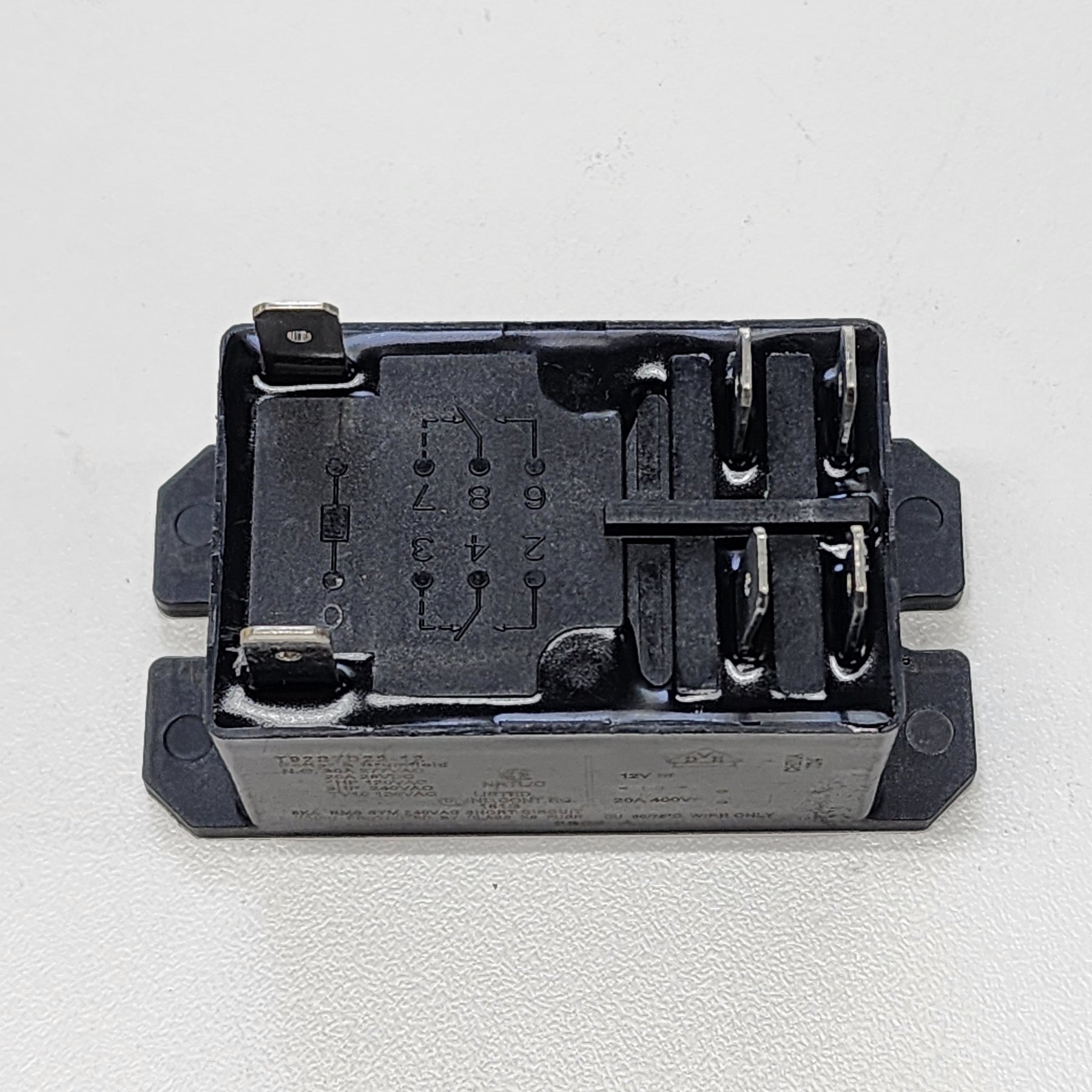

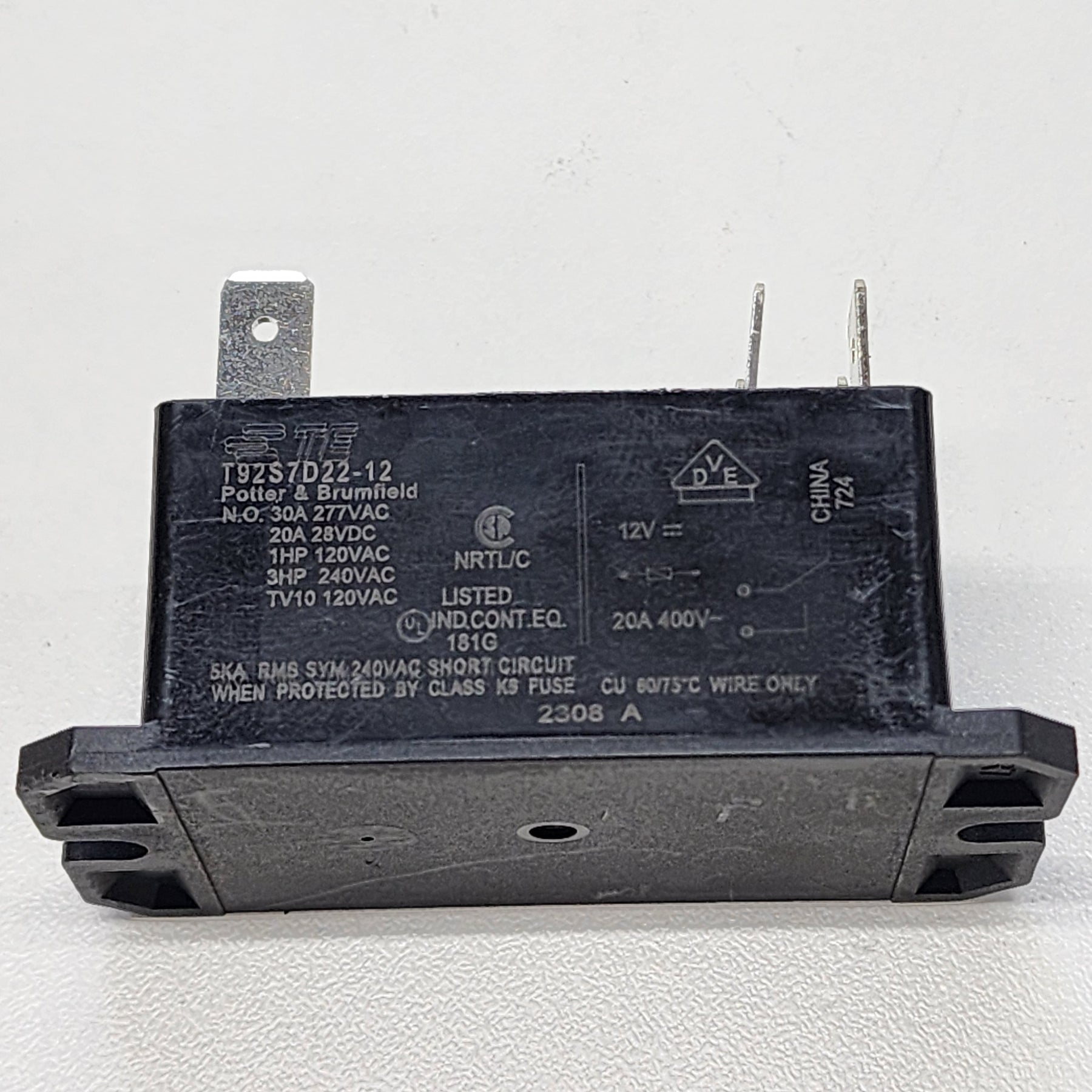

TE Connectivity T92S7D22-12 Relay – Dual Power, Guaranteed Performance
This double-pole, normally open (DPST-NO) relay operates with a 12 V DC coil and can switch up to 30 A per contact, for loads up to 277 V AC or 28 V DC.
Ideal for high-power applications: electric vehicles, HVAC, compressors, and industrial systems.
Robust silver alloy contacts for maximum life, high-voltage insulation up to 4 kV, and Quick-Connect terminals for fast and reliable installation. UL/TUV certified for optimal safety.
Quick Specifications:
Type: Double-pole, normally open (DPST-NO)
Coil Voltage: 12 V DC
Maximum Current per Contact: 30 A
Maximum Load Voltage: 277 V AC or 28 V DC
Mounting: Quick-Connect, panel mount
